This remarkable system serves as aviation’s precise odometer, providing real-time distance measurements that have guided aircraft through fog, darkness, and storms since the mid-20th century.

While modern GPS captures headlines, DME continues to form the bedrock of en-route and approach navigation, offering a level of reliability and precision that has made it indispensable for both commercial jets and general aviation.

What is Distance Measuring Equipment (DME)?

Distance Measuring Equipment is a radio navigation technology that determines an aircraft’s slant range distance from a ground-based transponder. Operating in the 960-1215 MHz frequency range, DME provides pilots with continuous, accurate distance readings measured in nautical miles.

The system consists of an aircraft-mounted interrogator and a ground-based transponder, working in concert to calculate distance based on the time it takes for radio signals to travel between them. Unlike GPS, which provides position relative to satellites, DME offers precise point-to-point measurements that are crucial for instrument approaches, holding patterns, and navigation along established airways.

---

Start your Airbus A320 Type Rating with this book “click here“

How DME Works

The operation of DME represents an elegant dance of physics and electronics. When an aircraft’s DME interrogator transmits a pulse pair on a specific frequency, the ground station receives these signals and responds after a precise 50-microsecond delay. The aircraft’s equipment measures the total time elapsed between transmission and reception, subtracts the known ground delay, and calculates distance based on the speed of radio wave propagation.

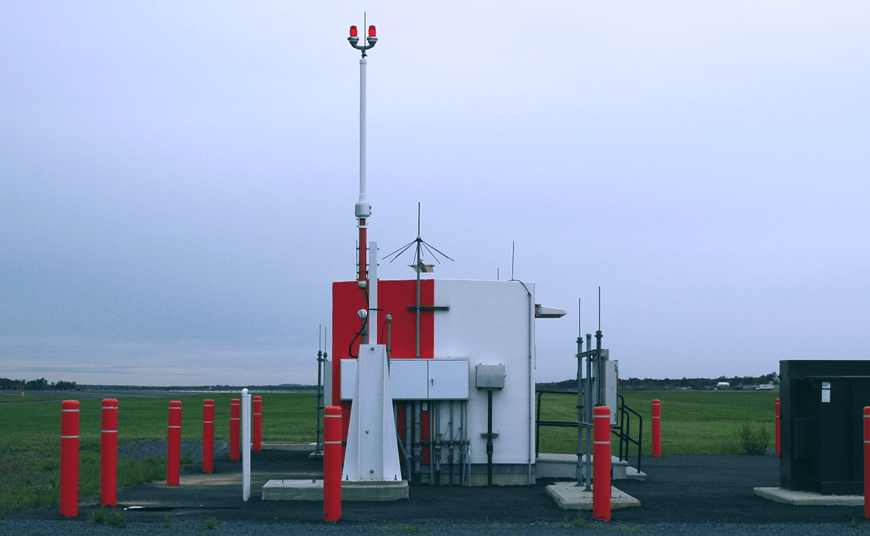

This process involves several sophisticated components working in harmony. The aircraft’s system includes the interrogator, antenna, and display unit, while the ground installation features the transponder, antenna array, and monitoring equipment.

Modern DME systems can handle multiple aircraft simultaneously through sophisticated signal processing that identifies and pairs incoming interrogations with outgoing replies, ensuring each aircraft receives accurate distance information regardless of how many other aircraft are using the same facility.

DME’s Evolution in the Navigation Ecosystem

DME emerged as part of the TACAN (Tactical Air Navigation) system developed for military aircraft in the 1940s, with civil aviation adopting the technology shortly thereafter. The initial systems were bulky, heavy, and required significant pilot interpretation. Over decades of refinement, DME has evolved into compact, highly reliable units that integrate seamlessly with other cockpit systems.

The relationship between DME and VOR stations represents one of aviation’s most successful partnerships. While VOR provides directional guidance, DME adds the critical distance component, creating a complete polar coordinate navigation system. This combination allowed for the development of precise airways and approach procedures that revolutionized instrument flight. Even with the advent of GPS, DME maintains its importance as a reliable backup and primary means for specific operations where GPS may be unavailable or unsuitable.

DME in Action: Real-World Applications

En-route Navigation
Along established airways, DME provides continuous distance information that helps pilots monitor progress, verify position, and make accurate fuel calculations. The system’s reliability makes it particularly valuable in remote areas and oceanic regions where radar coverage is nonexistent.

Instrument Approaches
Many instrument approach procedures incorporate DME for critical distance calls during descent. The DME arc approach, where pilots maintain a constant distance while circling to align with the runway, remains a standard procedure at many airports worldwide.

Holding Patterns
DME-defined holds provide precise positioning without requiring pilots to cross specific navigational aids. These are especially valuable in high-density airspace where multiple aircraft may be holding simultaneously.

Required Navigation Performance (RNP)
While primarily associated with GPS, RNP procedures often incorporate DME/DME updating to maintain the required navigation accuracy, particularly in GPS-denied environments.

DME Advantages

Proven Reliability
With decades of refinement and standardization, DME offers exceptional reliability. Ground stations feature redundant systems and continuous monitoring, while aircraft equipment benefits from straightforward technology with minimal failure points.

Predictable Accuracy
DME typically provides accuracy within 0.1 nautical miles or 3% of the distance, whichever is greater. This level of precision remains consistent regardless of weather conditions, time of day, or atmospheric factors that might affect other navigation systems.

Independent Operation
Unlike GPS, DME requires no external satellite infrastructure vulnerable to solar activity, jamming, or political control. The ground-based nature of DME makes it a sovereign navigation resource under direct control of national aviation authorities.

Seamless Integration
Modern DME systems integrate with other cockpit systems to provide comprehensive navigation solutions. This integration allows for features like automatic tuning and position updating that enhance situational awareness while reducing pilot workload.

The Future of DME in a Satellite World

Despite the dominance of GPS, DME continues to evolve. Modern solid-state ground equipment offers improved reliability and reduced maintenance costs. Aircraft systems have become smaller, more efficient, and better integrated with glass cockpit displays. The development of multi-mode receivers that combine DME with other navigation sensors ensures the technology remains relevant.

Looking ahead, DME will likely maintain its role as a critical backup system while finding new applications in integrated navigation architectures. The system’s inherent security and reliability make it particularly valuable for safety-critical operations where GPS vulnerability remains a concern. As aviation moves toward more automated systems, DME’s precise distance measurements may find new applications in vehicle-to-vehicle spacing and precision landing systems.

DME FAQs

How accurate is DME?

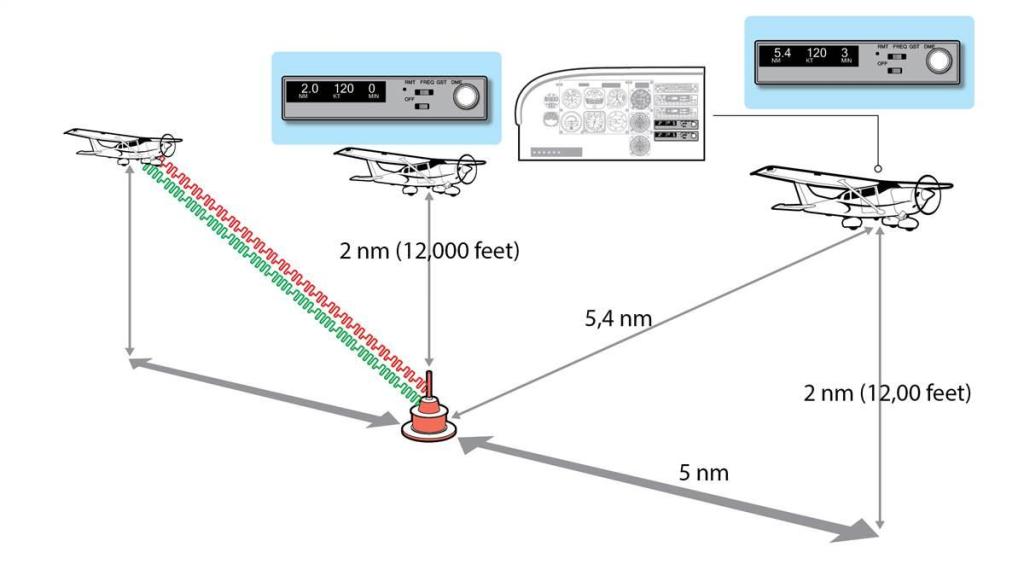

DME typically provides accuracy within 0.1 nautical miles or 3% of the distance, whichever is greater. The displayed distance represents slant range rather than horizontal distance, creating minor differences at close ranges and high altitudes.

Why does DME sometimes show greater distances when closer to a station?
This apparent anomaly results from the slant range measurement. At high altitudes near a DME station, the straight-line distance through the air is indeed greater than the horizontal distance to the station directly below.

Can multiple aircraft use the same DME ground station simultaneously?
Yes, modern DME ground stations can handle approximately 100-200 aircraft simultaneously through sophisticated signal processing that pairs each interrogation with the correct aircraft.

How does DME differ from GPS in practical terms?
While GPS provides global positioning based on satellite signals, DME offers precise point-to-point distance measurements. DME operates independently of satellites and provides direct distance readings without complex position calculations.

Is DME being phased out in favor of GPS?
While GPS has become the primary navigation means in many airspace regions, DME remains required equipment for many instrument procedures and serves as a critical backup system. Most aviation authorities plan to maintain DME infrastructure for the foreseeable future.

What is the typical range of DME equipment?
The line-of-sight nature of DME signals typically provides reliable service up to 200 nautical miles at higher altitudes, though this varies with antenna height, transmitter power, and terrain.

How has DME integration changed in modern glass cockpits?
Modern systems automatically tune appropriate DME frequencies based on the active navigation source, display DME information on primary flight displays, and use DME inputs for sophisticated navigation calculations without requiring separate pilot action.
